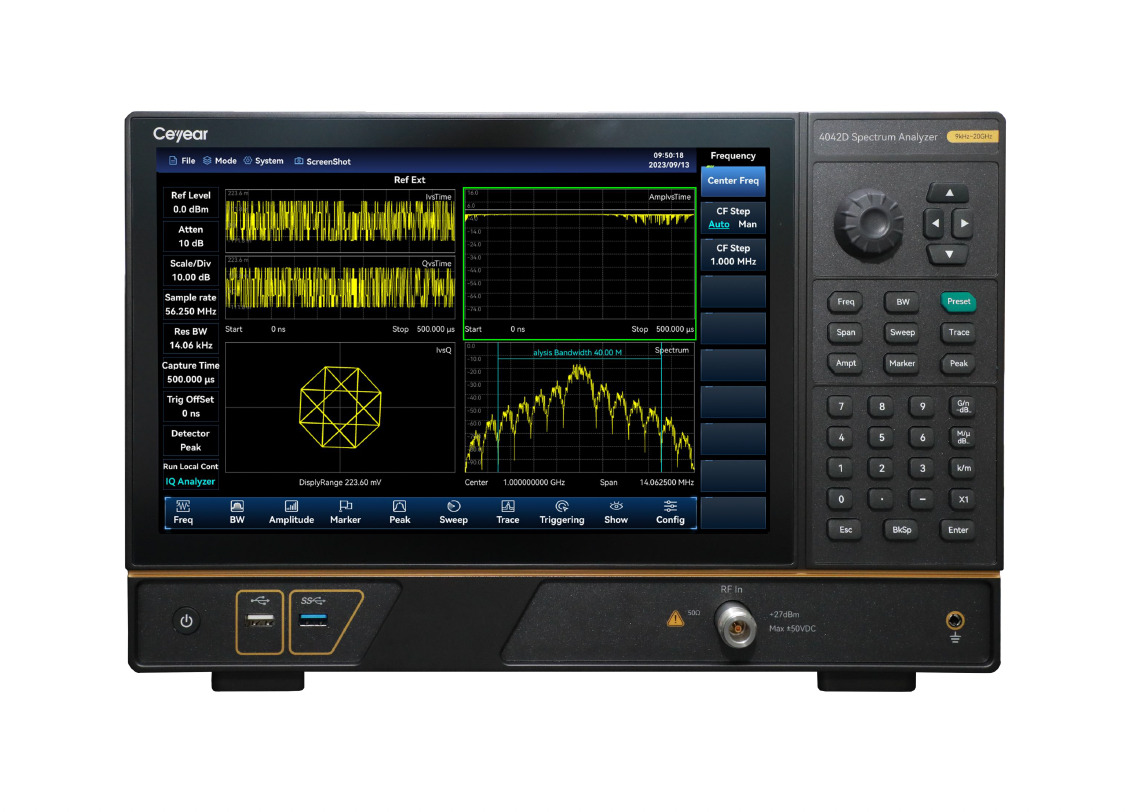

Ceyear 4042 Series Spectrum Analyzer

Main features

Frequency measurement range

9kHz~9GHz/20GHz, standard full-band preamplifier

RF performance specifications

DANL: -163dBm/Hz (10MHz~2GHz, preamplifier ON, Typical)

SSB Phase Noise: ≤-113dBc/Hz@100kHz offset @1GHz carrier (Typical)

≤-108dBc/Hz@100kHz offset@10GHz carrier(Typical)

TOI: +16dBm@900MHz (Typical)

Absolute Amplitude Accuracy: ± 1.0dB (Typical)

Fast Sweep Speed

Sweep time <33ms (span 20GHz, resolution bandwidth 3MHz)

Sweep time<4s (span 1GHz, resolution bandwidth 1kHz, Fast FFT sweep mode)

Multiple measurement function modes

Spectrum analysis,real-time spectrum(maximum BW 40MHz),interference analyzer(spectrogram, RSSI),AM/FM/PM analyzer,channel scanner,field strength,power meter,peak-power meter,IQ analyzer,EMI analyzer,phase noise meter,vector signal analyzer,time gate, etc.

Multiple intelligent measurement functions

Channel power, OBW, ACPR, emission mask, C/N, harmonics and spur emissions,Tune Listen,multi-ACPR,IP3,CCDF, etc.

Various auxiliary test interfaces and digital interfaces

10MHz reference input and output, zero span IF output, LAN, USB, HDMI, etc

Convenient and quick user operation experience

12.1-inch capacitive touch screen, supporting multi-touch, with 6 independent markers, supporting signal tracking and peak tracking, with 3 display traces, 6 detection methods (standard, positive peak, negative peak, sampling, mean, root mean square), and supporting HDMI output

Support a variety of external options and accessories

such as USB CW power probe, USB peak power probe, EMI near field probe, etc.
