Key Features
Multi-Instrument Integration

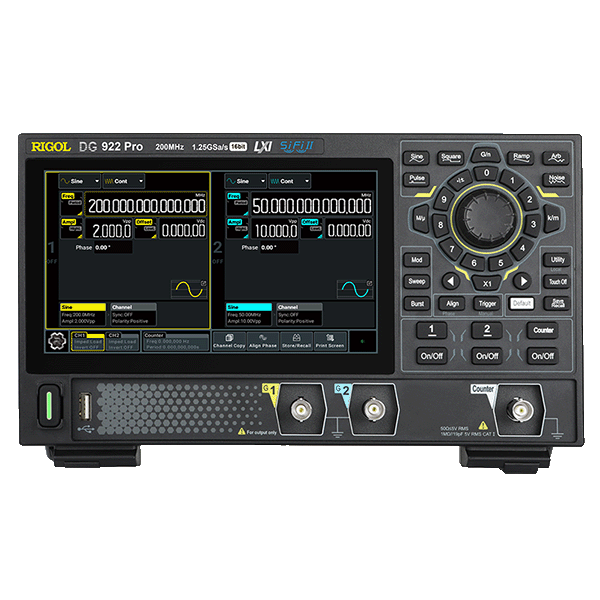

The DG900 Pro is a highly versatile desktop instrument that integrates multiple functions into a single unit:
-
Function Generator
-
Arbitrary Waveform Generator (AWG)
-
Noise Generator
-
Pulse Generator
-
Harmonic Generator
-
Analog/Digital Modulator
-
Frequency Meter (Counter)
Core Performance Specifications
-
High Accuracy & Fidelity: Features a high 1.25 GSa/s sampling rate paired with 16-bit vertical resolution for precise level quantization and high-fidelity output.
-
Ultra-Low Signal Jitter: Driven by RIGOL’s proprietary SiFi II technology, the instrument generates arbitrary waveforms point-by-point to prevent distortion. All output signals achieve a rock-solid jitter down to 200 ps (rms).
-
Fast Edge Outputs: Supports a 60 MHz square wave and a 50 MHz adjustable-edge pulse wave, delivering exceptionally fast rise times as low as 3 ns.
-
Harmonic Generation: Features a built-in function to stack up to the 20th harmonic, ideal for high-order filter and amplifier performance testing.
-
High-Resolution Frequency Meter: Includes an integrated 7-bit, 1 GHz frequency meter, making it easy to capture and debug standard high-frequency signals like VHF and UHF.
Advanced Waveform Control
-
Rich Modulation Suite: Fully supports an extensive array of modulation functions, including AM, FM, PM, ASK, FSK, PSK, PWM, and SUM modulation, targeting communication, motor control, and switching power supply testing.
-
Smart Sequence Function: Supports up to 64 waveform events and 256 repetitions, allowing users to load multiple test cases sequentially for seamless automated execution and enhanced workflow efficiency.
Portability & Usability
-

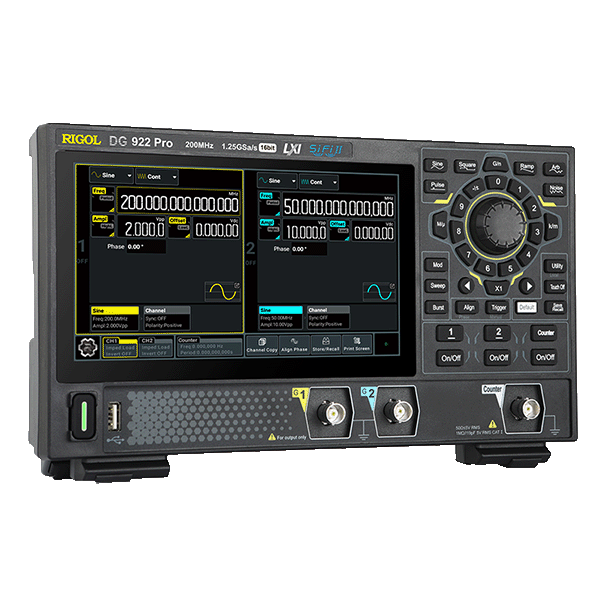

7-inch Color Touch Screen: A crisp, dual-channel interface that enables engineers to view, set parameters, and edit waveforms for both channels simultaneously without needing a PC.
-
Ultra-Compact, Light Weight: Designed to save desk space with small dimensions (266mm W x 165mm H x 63mm D) and a total weight of only 1.78 kg.
-

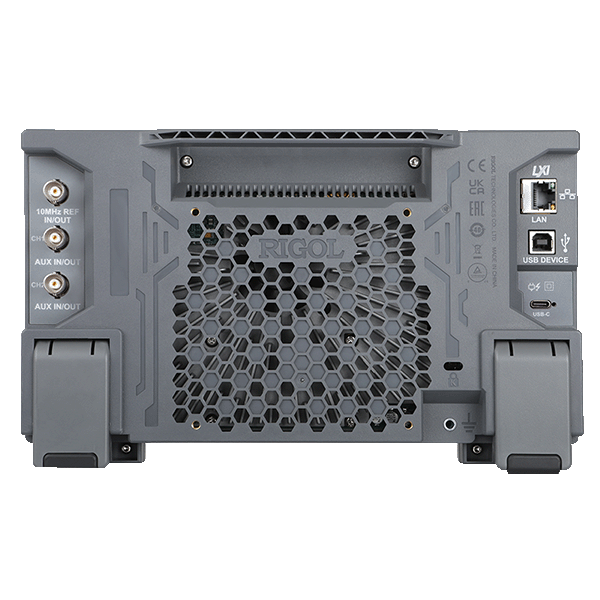

Type-C Power Connector: Equipped with a Type-C connector, allowing the device to be powered via a standard mobile power bank/supply for convenient on-site and remote field testing.
