Key Features
Power Delivery & Channel Isolation
-
3 Electrically Isolated Channels: Offers three independent outputs, allowing you to power separate circuits safely without creating ground loops.
-
Total Power Envelope: Up to 210 W maximum total output power.
-
Channel Configurations (by model):
-
DP932A / DP932U: CH1 ($0\text{ to }32\text{ V / }3\text{ A}$), CH2 ($0\text{ to }32\text{ V / }3\text{ A}$), CH3 ($0\text{ to }6\text{ V / }3\text{ A}$) — 210 W Max.
-
DP932E: CH1 ($0\text{ to }30\text{ V / }3\text{ A}$), CH2 ($0\text{ to }30\text{ V / }3\text{ A}$), CH3 ($0\text{ to }6\text{ V / }3\text{ A}$) — 198 W Max.
-
Power Purity & Performance Indices
-
Ultra-Low Ripple and Noise: Keeps the output signal clean with noise levels under $<350\text{ }\mu\text{Vrms / }2\text{ mVpp}$ over a $20\text{ Hz}$ to $20\text{ MHz}$ bandwidth, protecting highly sensitive components from power-rail distortion.
-
Fast Transient Response Time: Recovers to within a $\pm15\text{ mV}$ settling band in less than $50\text{ }\mu\text{s}$ following sharp load changes ($50\%$ to $100\%$ steps), preventing voltage sags or spikes.
-
Premium Resolution & Accuracy: Delivers programming and readback precision down to $1\text{ mV / }1\text{ mA}$ (on the DP932A), essential for tracking subtle current shifts in low-power modes.
Advanced Flexibility & Control Functions
-
One-Key Internal Series/Parallel Routing: Channels 1 and 2 can be internally combined directly through the menu. You can quickly switch to a $64\text{ V}$ Series mode or a $6\text{ A}$ Parallel mode using a single cable hookup to CH1, eliminating complex external bridging wires.
-
High-Speed Programmable Arbitrary Function (Arb): Supports up to 512 arbitrary points with customizable voltage/current profiles and a minimum dwell time down to $100\text{ ms}$. Perfect for simulating battery discharge drops or multi-rail power-up sequences.
-
Built-in Power Analysis: Features real-time graphical data logging and analysis directly on the screen, letting you monitor, capture, and graph voltage, current, and power over time.
Hardware Options & Form Factor
-

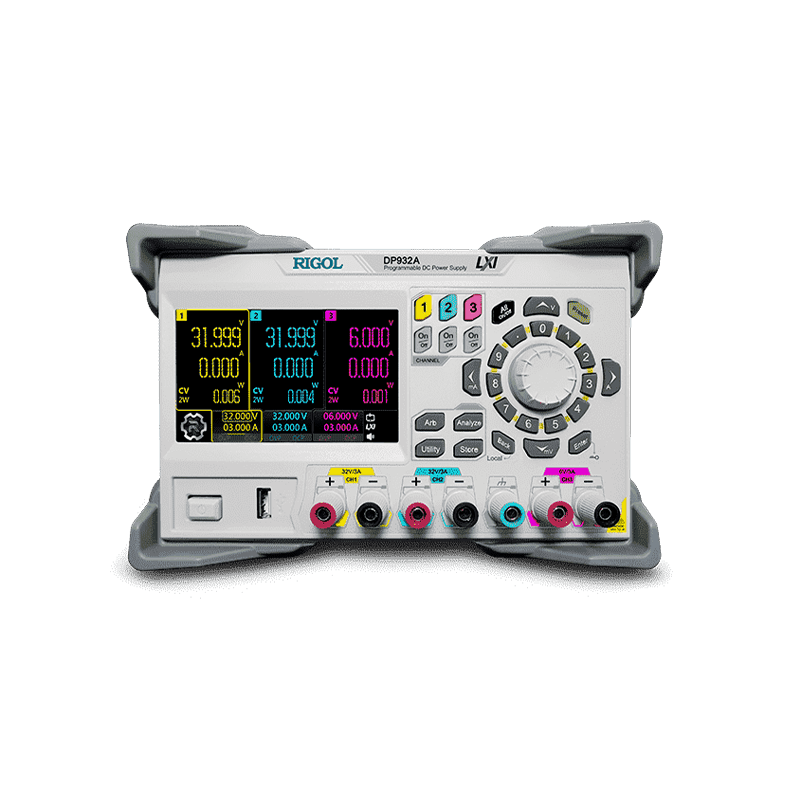

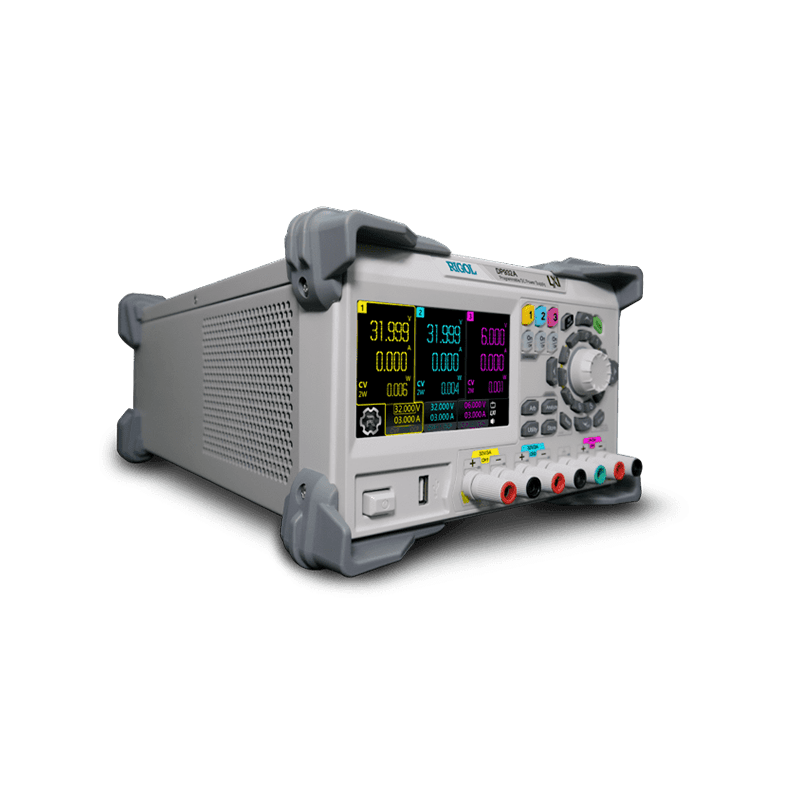

4.3-inch LCD Color Touch Screen: Integrates a smooth touch-based layout that displays the state configurations, measurements, and trend charts of all three channels simultaneously.
-
Tailored Tier Variations:
-
DP932A (Standard): Comes fully equipped with maximum precision ($1\text{ mV/1 mA}$), standard digital I/O, and fast Arb enabled.
-
DP932U (University): Tailored for education; features front-panel safety banana sockets with zero exposed metal parts to protect students. Resolution and interfaces are upgradable.
-
DP932E (E-commerce): Economical variant offering basic precision ($10\text{ mV/10 mA}$) and standard binding posts.
-
-

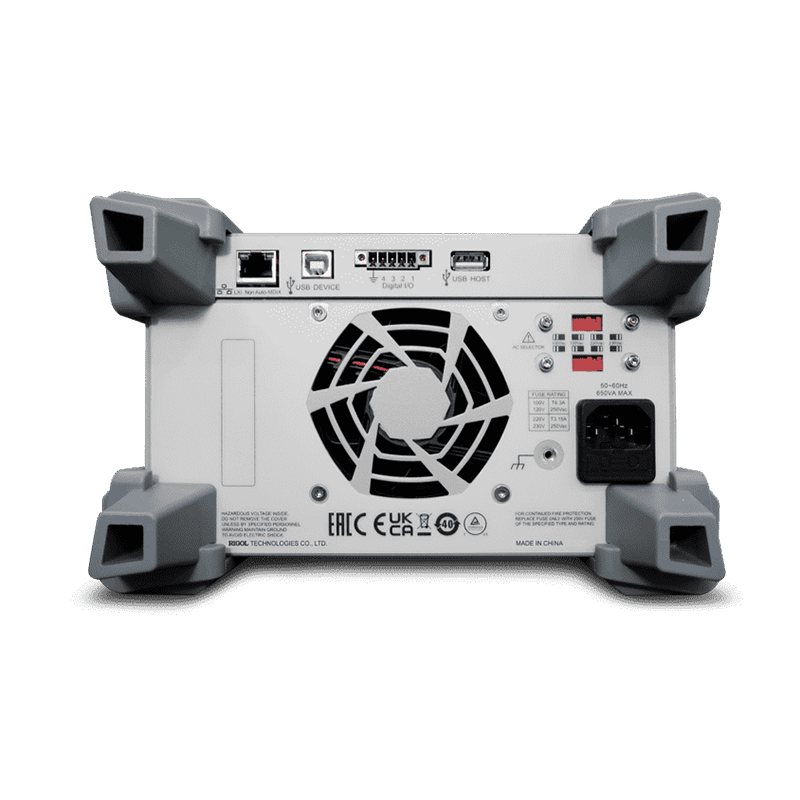

Remote Connectivity: Standard USB Host, USB Device, and LAN interfaces natively support standard SCPI automation command architectures alongside browser-based Web Control.
